What is CPU Scheduling?

CPU Scheduling is a process of determining which process will own CPU for execution while another process is on hold. The main task of CPU scheduling is to make sure that whenever the CPU remains idle, the OS at least selects one of the processes available in the ready queue for execution. The selection process will be carried out by the CPU scheduler. It selects one of the processes in memory that are ready for execution.

·         In this CPU scheduling tutorial, you will learn:

·         What is CPU scheduling?

·         Types of CPU Scheduling

·         Important CPU scheduling Terminologies

·         CPU Scheduling Criteria

·         Interval Timer

·         What is a Dispatcher?

·         Types of CPU scheduling Algorithm

·         First Come First Serve

·         Shortest Remaining Time

·         Priority Based Scheduling

·         Round-Robin Scheduling

·         Shortest Job First

·         Multiple-Level Queues Scheduling

·         The Purpose of a Scheduling algorithm

Types of CPU Scheduling

Here are two kinds of Scheduling methods:

Preemptive Scheduling

In Preemptive Scheduling, the tasks are mostly assigned with their priorities. Sometimes it is important to run a task with a higher priority before another lower-priority task, even if the lower-priority task is still running. The lower priority task holds for some time and resumes when the higher priority task finishes its execution.

Click Me to Explore

Detailed description of the Computer and its Components. (Input Units)

A Complete and Detailed Definition with examples of Output Devices (New Tech based)

The Central Processing Unit (CPU) Latest Enquiries

Memory Unit (I/O) Devices by Farrukh

The Basic Terminologies of Computer by Md. Farrukh Asif

Generation of Computer by Md. Farrukh Asif

The Evolution of Computer Languages(Part-I) by Md. Farrukh Asif

The Evolution of Computer Languages(Part-II) by Md. Farrukh Asif

Computer Network Topologies  By Md. Farrukh Asif

Communication Protocols  by “Md Farrukh Asif”

Basic Computer's Features and Use by Md. Farrukh Asif

Operating System and its Functionality: by Md. Farrukh Asif

Batch OS and Time Sharing OS by Md. Farrukh Asif

Real-Time Operating Systems (RTOS): Explained Simply

CPU Scheduling and its types

The Wider Use of Microkernel and its Components in OS

Fundamentals of Computer MCQs with Answers

Non-Preemptive Scheduling

In this type of scheduling method, the CPU has been allocated to a specific process. The process that keeps the CPU busy will release the CPU either by switching context or terminating. It is the only method that can be used for various hardware platforms. That’s because it doesn’t need special hardware (for example, a timer) like preemptive scheduling.

When scheduling is Preemptive or Non-Preemptive?

To determine if scheduling is preemptive or non-preemptive, consider these four parameters:

1.    A process switches from the running to the waiting state.

2.    Specific process switches from the running state to the ready state.

3.    Specific process switches from the waiting state to the ready state.

4.    Process finished its execution and terminated.

Only conditions 1 and 4 apply, the scheduling is called non-preemptive.

All other scheduling is preemptive.

Important CPU scheduling Terminologies

·         Burst Time/Execution Time: It is the time required by the process to complete execution. It is also called running time.

·         Arrival Time: when a process enters in a ready state

·         Finish Time: when the process is complete and exits from a system

·         Multiprogramming: Several programs which can be present in memory at the same time.

·         Jobs: It is a type of program without any kind of user interaction.

·         User: It is a kind of program having user interaction.

·         Process: It is the reference that is used for both the job and the user.

·         CPU/IO burst cycle: Characterizes process execution, which alternates between CPU and I/O activity. CPU times are usually shorter than the time of I/O.

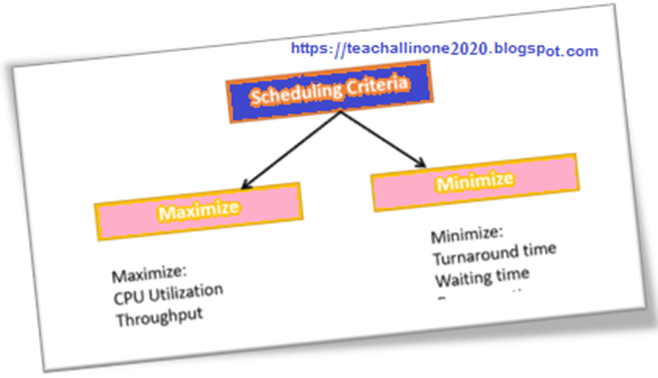

CPU Scheduling Criteria

A CPU scheduling algorithm tries to maximize and minimize the following:

Maximize:

CPU utilization: CPU utilization is the main task in which the operating system needs to make sure that the CPU remains as busy as possible. It can range from 0 to 100 percent. However, for the RTOS, it can range from 40 percent for low-level and 90 percent for high-level systems.

Throughput: The number of processes that finish their execution per unit of time is known as Throughput. So, when the CPU is busy executing the process, at that time, work is being done, and the work completed per unit time is called Throughput.

Minimize:

Waiting time: Waiting time is an amount that specific process needs to wait in the ready queue.

Response time: It is the amount of time in which the request was submitted until the first response is produced.

Turnaround Time: Turnaround time is an amount of time to execute a specific process. It is the calculation of the total time spent waiting to get into the memory, waiting in the queue and, executing on the CPU. The period between the time of process submission to the completion time is the turnaround time.

Interval Timer

Timer interruption is a method that is closely related to preemption. When a train process gets the CPU allocation, a timer may be set to a specified interval. Both timer interruption and preemption force a process to return the CPU before its CPU burst is complete.

Most of the multi-programmed operating system uses some form of a timer to prevent a process from tying up the system forever.

What is Dispatcher?

It is a module that provides control of the CPU to the process. The Dispatcher should be fast so that it can run on every context switch. Dispatch latency is the amount of time needed by the CPU scheduler to stop one process and start another.

Functions performed by Dispatcher:

• Context Switching
• Switching to user mode
• Moving to the correct location in the newly loaded program.

Types of CPU Scheduling Algorithm

There are mainly six types of process scheduling algorithms

1. First Come First Serve (FCFS)
2. Shortest-Job-First (SJF) Scheduling
3. Shortest Remaining Time
4. Priority Scheduling
5. Round Robin Scheduling
6. Multilevel Queue Scheduling

Scheduling Algorithms

First Come First Serve

First Come First Serve is the full form of FCFS. It is the easiest and most simple CPU scheduling algorithm. In this type of algorithm, the process that requests the CPU gets the CPU allocation first. This scheduling method can be managed with a FIFO queue.

As the process enters the ready queue, its PCB (Process Control Block) is linked with the tail of the queue. So, when CPU becomes free, it should be assigned to the process at the beginning of the queue.

Characteristics of the FCFS method:

• It offers a non-preemptive and pre-emptive scheduling algorithm.
• Jobs are always executed on a first-come, first-served basis
• It is easy to implement and use.
• However, this method is poor in performance, and the general wait time is quite high.

Shortest Remaining Time

The full form of SRT is the Shortest remaining time. It is also known as SJF preemptive scheduling. In this method, the process will be allocated to the task, which is closest to its completion. This method prevents a newer ready state process from holding the completion of an older process.

Characteristics of the SRT scheduling method:

• This method is mostly applied in batch environments where short jobs are required to be given preference.
• This is not an ideal method to implement in a shared system where the required CPU time is unknown.
• Associate with each process as the length of its next CPU burst. So the operating system uses these lengths, which helps to schedule the process in the shortest possible time.

Priority Based Scheduling

Priority scheduling is a method of scheduling processes based on priority. In this method, the scheduler selects the tasks to work as per the priority.

Priority scheduling also helps OS to involve priority assignments. The processes with higher priority should be carried out first, whereas jobs with equal priorities are carried out on a round-robin or FCFS basis. Priority can be decided based on memory requirements, time requirements, etc.

Round-Robin Scheduling

Round robin is the oldest, simplest scheduling algorithm. The name of this algorithm comes from the round-robin principle, where each person gets an equal share of something in turn. It is mostly used for scheduling algorithms in multitasking. This algorithm method helps for starvation-free execution of processes.

Characteristics of Round-Robin Scheduling

• Round robin is a hybrid model which is clock-driven
• Time slice should be minimum, which is assigned for a specific task to be processed. However, it may vary for different processes.
• It is a real-time system that responds to the event within a specific time limit.

Shortest Job First

SJF is a full form of (Shortest job first) is a scheduling algorithm in which the process with the shortest execution time should be selected for execution next. This scheduling method can be preemptive or non-preemptive. It significantly reduces the average waiting time for other processes awaiting execution.

Characteristics of SJF Scheduling

• It is associated with each job as a unit of time to complete.
• In this method, when the CPU is available, the next process or job with the shortest completion time will be executed first.
• It is implemented with a non-preemptive policy.
• This algorithm method is useful for batch-type processing, where waiting for jobs to complete is not critical.
• It improves job output by offering shorter jobs, which should be executed first, and mostly have a shorter turnaround time.

Multiple-Level Queues Scheduling

This algorithm separates the ready queue into various separate queues. In this method, processes are assigned to a queue based on a specific property of the process, like the process priority, size of the memory, etc.

However, this is not an independent scheduling OS algorithm as it needs to use other types of algorithms to schedule the jobs.

Characteristic of Multiple-Level Queues Scheduling:

• Multiple queues should be maintained for processes with some characteristics.
• Every queue may have its separate scheduling algorithms.
• Priorities are given for each queue.

The Purpose of a Scheduling Algorithm

Here are the reasons for using a scheduling algorithm:

• The CPU uses scheduling to improve its efficiency.
• It helps you to allocate resources among competing processes.
• The maximum utilization of the CPU can be obtained with multi-programming.
• The processes that are to be executed are in the ready queue.

Summary:

• CPU scheduling is a process of determining which process will own CPU for execution while another process is on hold.
• In Preemptive Scheduling, the tasks are mostly assigned with their priorities.
• In the Non-preemptive scheduling method, the CPU has been allocated to a specific process.
• The burst time is the time required for the process to complete execution. It is also called running time.
• CPU utilization is the main task in which the operating system needs to ensure that the CPU remains as busy as possible.
• The number of processes that finish their execution per unit of time is known as Throughput.
• Waiting time is an amount that a specific process needs to wait in the ready queue.
• It is the amount of time in which the request was submitted until the first response is produced.
• Turnaround time is the amount of time to execute a specific process.
• Timer interruption is a method that is closely related to preemption.
• A dispatcher is a module that provides control of the CPU to the process.
• Six types of process scheduling algorithms are: First Come First Serve (FCFS), 2) Shortest-Job-First (SJF) Scheduling, 3) Shortest Remaining Time, 4) Priority Scheduling, 5) Round Robin Scheduling, 6) Multilevel Queue Scheduling.
• In the First Come First Serve method, the process which requests the CPU gets the CPU allocation first.
• In the Shortest Remaining time, the process will be allocated to the task closest to its completion.
• In Priority Scheduling, the scheduler selects the tasks to work as per the priority.
• Round-robin scheduling works on the principle that each person gets an equal share of something in turn.
• In the Shortest job first, the shortest execution time should be selected for execution next.
• The multilevel scheduling method separates the ready queue into various separate queues. In this method, processes are assigned to a queue based on a specific property.
• The CPU uses scheduling to improve its efficiency.

Operating System Scheduling algorithms

A Process Scheduler schedules different processes to be assigned to the CPU based on particular scheduling algorithms. There are six popular process scheduling algorithms which we are going to discuss in this chapter −

• First-Come, First-Served (FCFS) Scheduling
• Shortest-Job-Next (SJN) Scheduling
• Priority Scheduling
• Shortest Remaining Time
• Round Robin(RR) Scheduling
• Multiple-Level Queues Scheduling

These algorithms are either non-preemptive or preemptive. Non-preemptive algorithms are designed so that once a process enters the running state, it cannot be preempted until it completes its allotted time, whereas preemptive scheduling is based on priority where a scheduler may preempt a low-priority running process anytime when a high-priority process enters into a ready state.

First Come First Serve (FCFS)

• Jobs are executed on a first come, first serve basis.
• It is a non-preemptive, pre-emptive scheduling algorithm.
• Easy to understand and implement.
• Its implementation is based on the FIFO queue.
• Poor in performance as average wait time is high.

The wait time for each process is as follows –



Process	Wait Time : Service Time - Arrival Time
P0	0 - 0 = 0
P1	5 - 1 = 4
P2	8 - 2 = 6
P3	16 - 3 = 13

Average Wait Time: (0+4+6+13) / 4 = 5.75

Shortest Job Next (SJN)

• This is also known as shortest job first, or SJF
• This is a non-preemptive, pre-emptive scheduling algorithm.
• The best approach to minimize waiting time.
• Easy to implement in Batch systems where required CPU time is known in advance.
• Impossible to implement in interactive systems where required CPU time is not known.
• The processer should know in advance how much time process will take.
• Given: Table of processes, and their Arrival time, Execution time



Process	Arrival Time	Execution Time	Service Time
P0	0	5	0
P1	1	3	5
P2	2	8	14
P3	3	6	8

The waiting time for each process is as follows −

Process	Waiting Time
P0	0 - 0 = 0
P1	5 - 1 = 4
P2	14 - 2 = 12
P3	8 - 3 = 5

Average Wait Time: (0 + 4 + 12 + 5)/4 = 21 / 4 = 5.25

Priority Based Scheduling

• Priority scheduling is a non-preemptive algorithm and one of the most common scheduling algorithms in batch systems.
• Each process is assigned a priority. The process with the highest priority is to be executed first and so on.
• Processes with the same priority are executed onfirst-come-servedved basis.
• Priority can be decided based on memory requirements, time requirements,, or any other resource requirement.

·         Given: Table of processes, and their Arrival time, Execution time, and priority. Here we are considering 1 as the lowest priority.

Process	Arrival Time	Execution Time	Priority	Service Time
P0	0	5	1	0
P1	1	3	2	11
P2	2	8	1	14
P3	3	6	3	5













The waiting time for each process is as follows −

Process	Waiting Time
P0	0 - 0 = 0
P1	11 - 1 = 10
P2	14 - 2 = 12
P3	5 - 3 = 2

Average Wait Time: (0 + 10 + 12 + 2)/4 = 24 / 4 = 6

Shortest Remaining Time

·        Shortest remaining time (SRT) is the preemptive version of the SJN algorithm.

·        The processor is allocated to the job closest to completion but it can be preempted by a newer ready job with a shorter time to completion.

·        Impossible to implement in interactive systems where required CPU time is not known.

·        It is often used in batch environments where short jobs need to give preference.

Round Robin Scheduling

·        Round Robin is the preemptive process scheduling algorithm.

·        Each process is provided a fixed time to execute, it is called a quantum.

·        Once a process is executed for a given period, it is preempted and another process executes for a given period.

·        Context switching is used to save states of preempted processes.

The wait time of each process is as follows −

Process	Wait Time: Service Time - Arrival Time
P0	(0 - 0) + (12 - 3) = 9
P1	(3 - 1) = 2
P2	(6 - 2) + (14 - 9) + (20 - 17) = 12
P3	(9 - 3) + (17 - 12) = 11

Average Wait Time: (9+2+12+11) / 4 = 8.5

Multiple-Level Queues Scheduling

Multiple-level queues are not an independent scheduling algorithm. They make use of other existing algorithms to group and schedule jobs with common characteristics.

• Multiple queues are maintained for processes with common characteristics.
• Each queue can have its own scheduling algorithms.
• Priorities are assigned to each queue.

For example, CPU-bound jobs can be scheduled in one queue and all I/O-bound jobs in another queue. The Process Scheduler then alternately selects jobs from each queue and assigns them to the CPU based on the algorithm assigned to the queue.

*** See You Again ***

=========================

Like, Comment, Share

=========================
